Product details Specifications

Product details

Product features

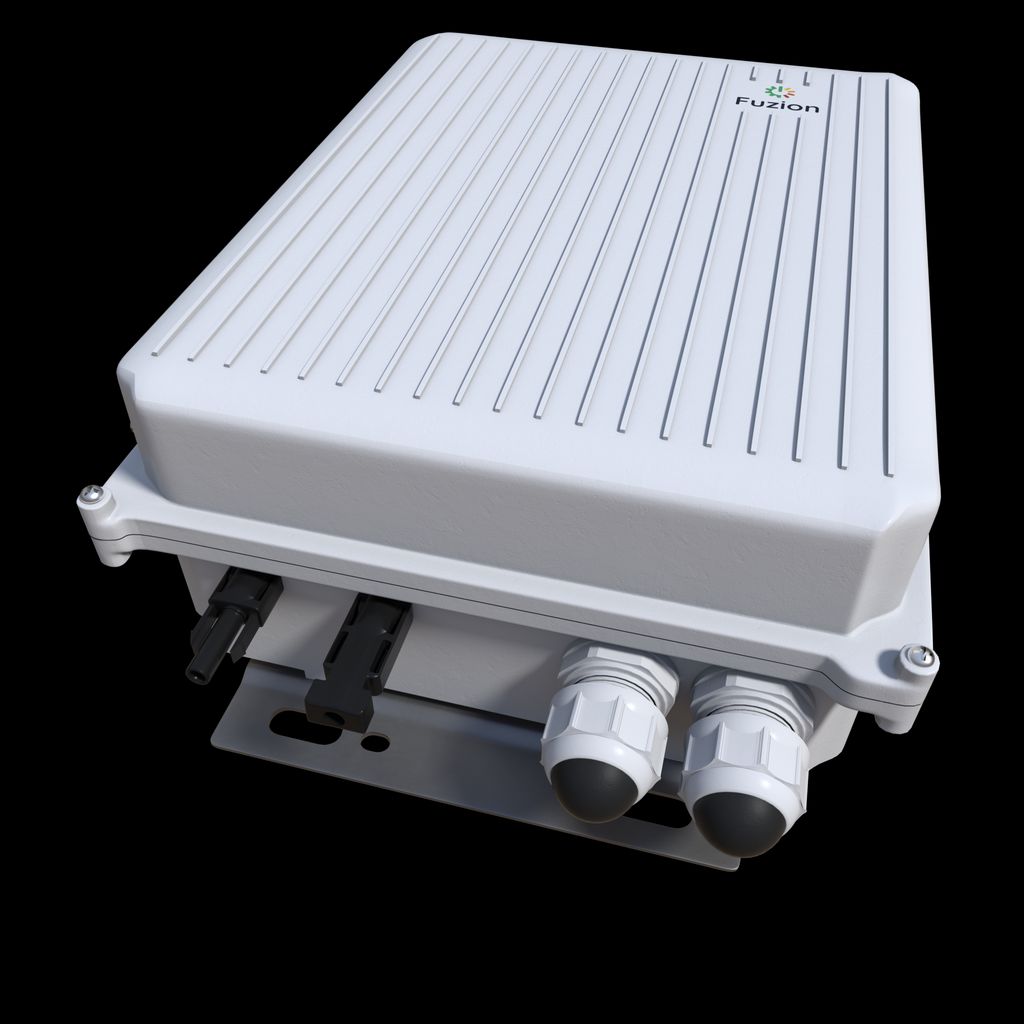

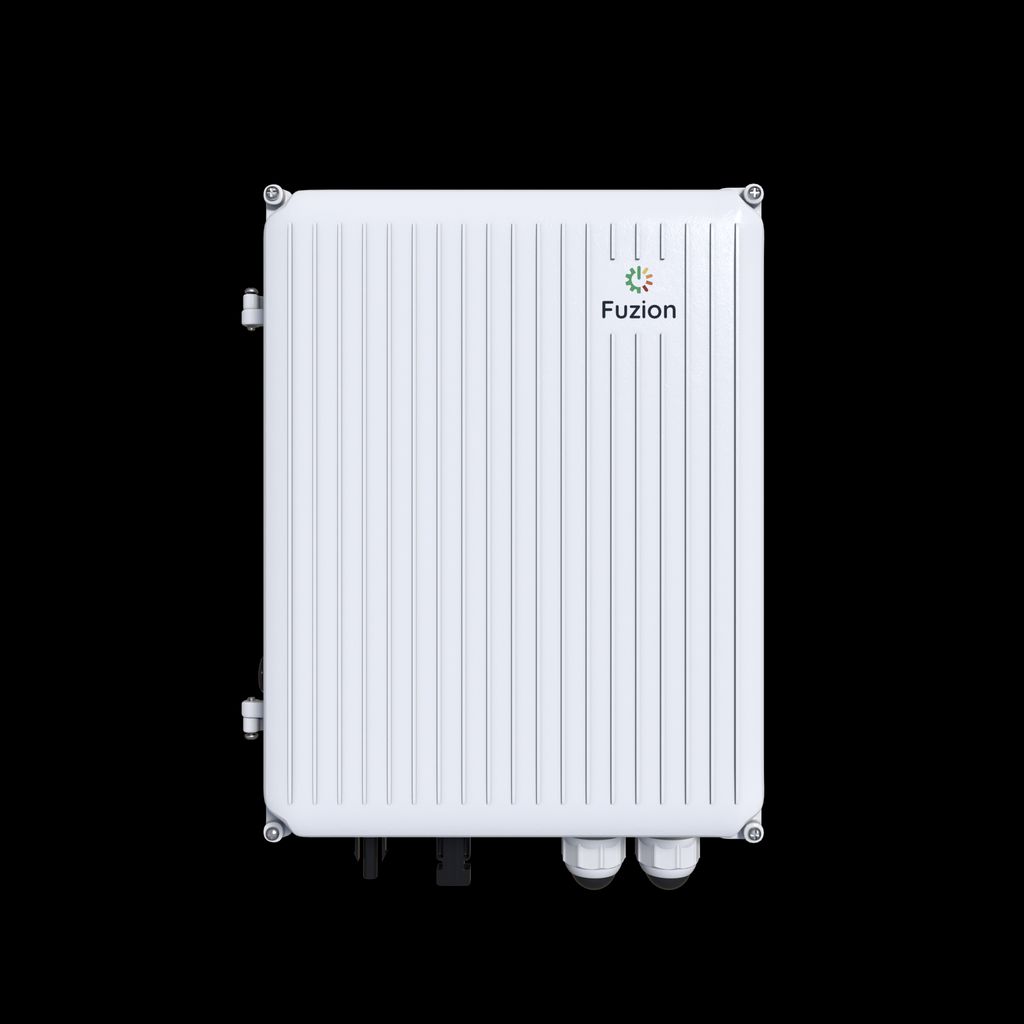

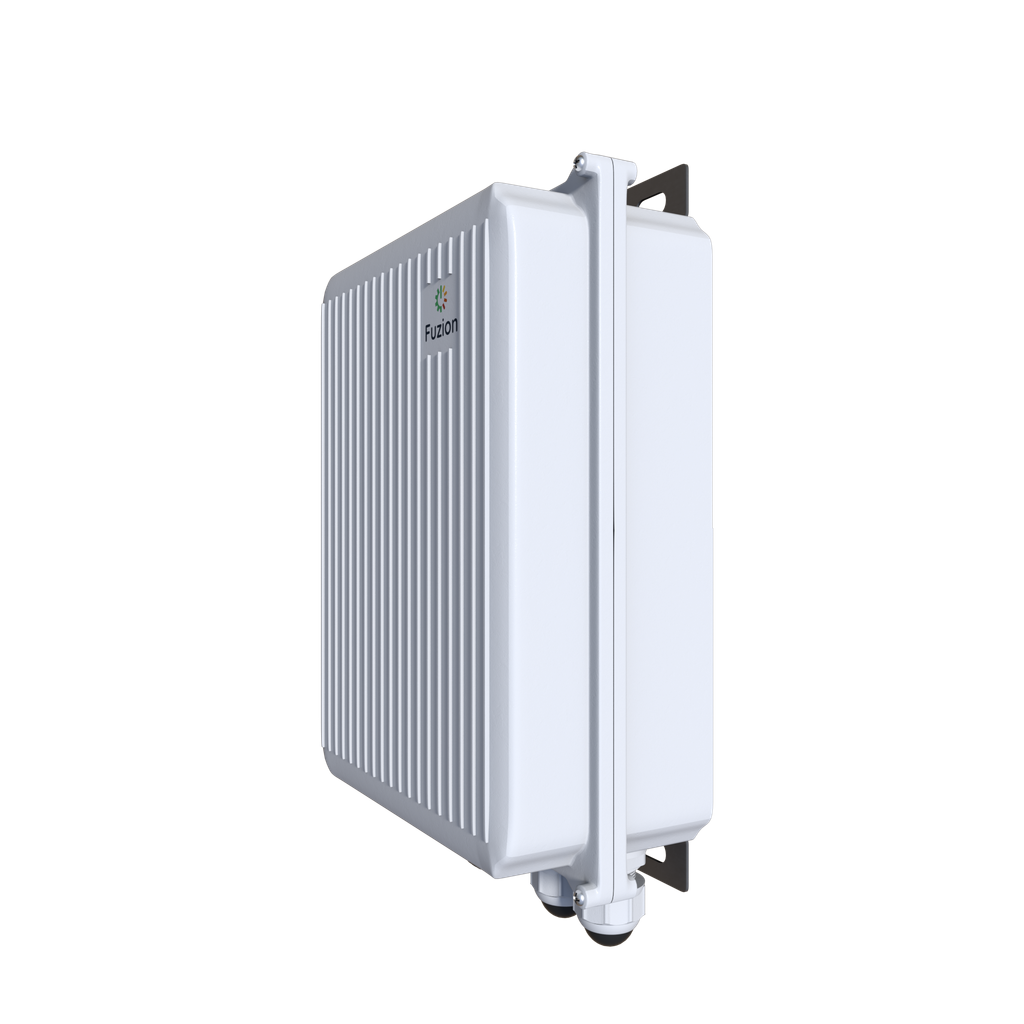

The Fuzion FTP-300 is a durable solar charged power solution with PoE in a small form factor ideal for Wi-Fi hotspots, microwave radios, cellular gateways, surveillance cameras and more. The FTP-300 is designed for “deploy-and-forget” installations in remote areas and for operation under harsh environmental conditions.

Fuzion is committed to connecting people and things in an environmentally sustainable manner. FTP-300 is designed for energy efficiency and compatibility with a wide range of solar panels, thus mitigating the emissions and air pollution caused by diesel and coal powered connectivity infrastructure. Each FTP-300 saves 175 kg of CO2 emissions per year, thereby contributing to the achievement of Sustainable Development Goal 7.

Powerful long-lasting battery

FTP-300 can provide up to 60 hours of battery backup to a Wi-Fi access point or be deployed with less battery capacity to minimize cost of batteries. The battery cells may last for up to 10 years.

Deploy and forget

FTP-300 is designed to work in harsh and remote locations. To conserve battery longevity, FTP-300 turns off when power levels become too low to sustain further usage. When the charge level is back above the threshold, FTP-300 automatically turns on again. No human intervention required.

Multiple options for power input

The high-grade built-in MPPT means that FTP-300 is perfectly coupled with solar panels. It can also work withAC power with the Fuzion IP-67 outdoor rated AC/DC adapter.

High power to size ratio

Leveraging Li-ion batteries, FTP-300 delivers an unprecedented amount of power compared to its small size.

Versatile

Having a separate DC output and two back-to-back connected data connectors, which individually can be PoE enabled, FTP-300 can be used in multiple applications such as powering wireless access points, surveillance cameras, wireless bridges and repeaters, cable modems, and remote lighting systems.

Remote power monitoring

FTP-300 has built-in IoT capabilities including remote monitoring capabilities. The Smart Power feature can be demonstrated and will soon be available on trial mode on request

Common applications

Ideal for Wi-Fi hotspots, surveillance cameras, microwave CPE's, cellular gateways and more.

Municipal Wi-Fi

IoT Installations

Microwave relay sites

Small Mobile Base Station

Traffic Control

Video Surveillance

Related accessories

We offer a range of accessories that allows you to install and operate with any supported network equipment in any location.

AC Power Support

Part#:

FTP-840-000088

IP67 outdoor rated AC/DC adapter with MC4 connectors for the FTP-300

Li-Ion 18650 batteries

Part#:

FTP-740-00018

Lithium-ion 18650 3.6V, 3,400 mAh battery cell. 18 batteries required for 150 Wh configuration. 36 batteries required for 300 Wh configuration.

Fuse Pack

Part#:

FTP-840-00014

Bag of extra fuses for FTP-300.

Specifications

Network
Ethernet ports	2 x 100 Mbps Ethernet, connected back-to-back
Power
Input power	Voltage: 27 VDC ( max ) Current: 6.25 A ( max )
Power sources	Solar panels AC / DC adapter ( external accessory )
Output power	Total maximum output power (PoE + AUX): 30 Watt 2 x 0/24/48 VDC selectable Passive PoE 48 VDC - Max Power 30W as PSE 24 VDC - Max Power 30W as PSE (15W/port) • 1 x AUX + 24 VDC -Max Power 30 W
Output terminals	Ap2 x RJ45 data ports 1 x RJ45 port for IoT (only) 1 x DC cable terminal

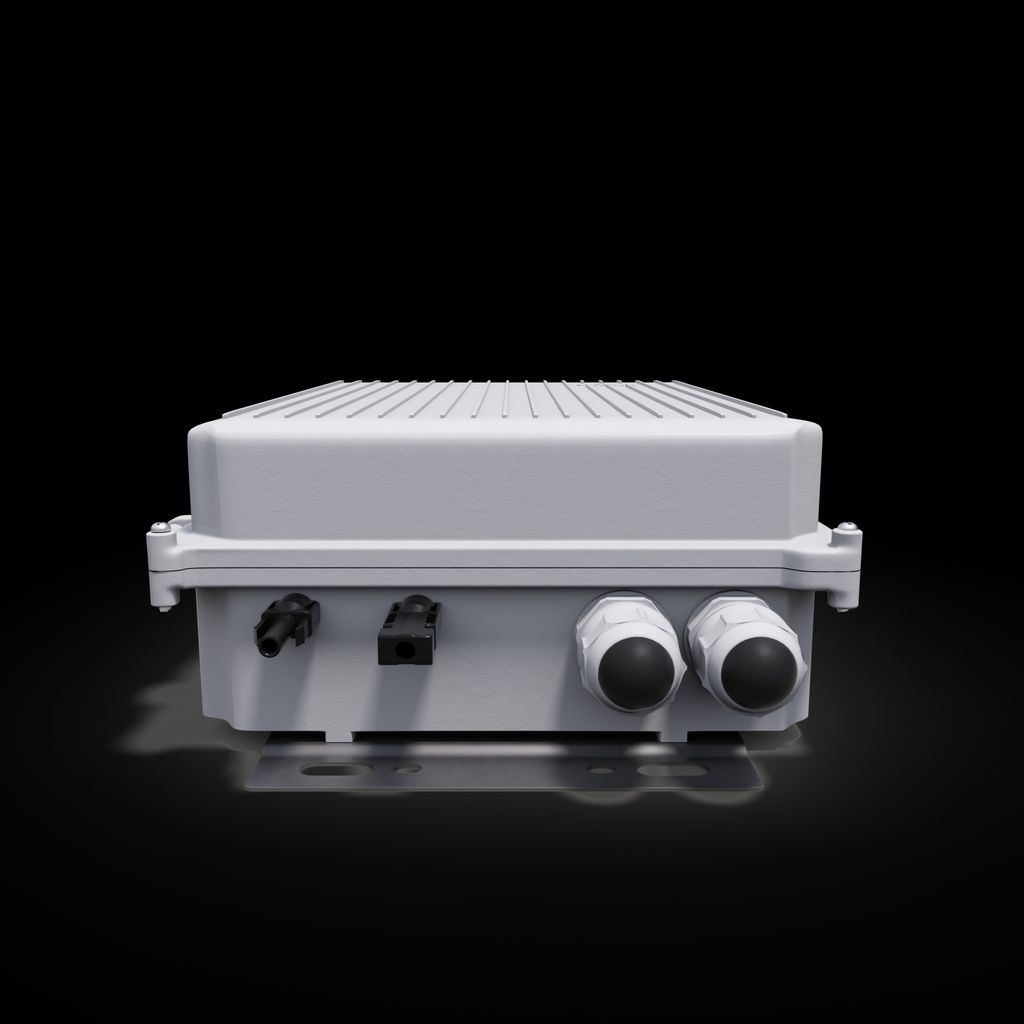

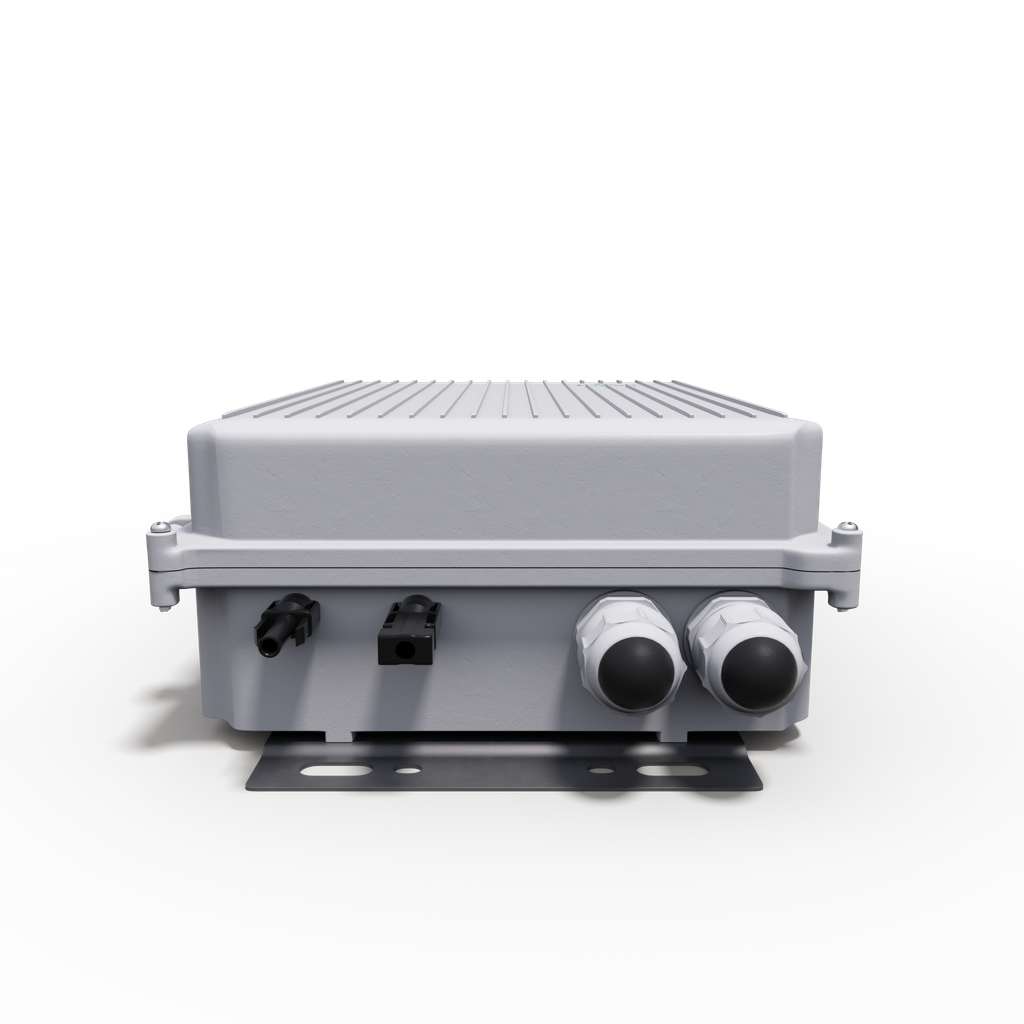

Input terminals	2 x MC4 connectors ( male / female )
Solar panel specifications	36 cell panels Minimum Vmp: 18 V Maximum Voc: 27 V
Power usage	Controller self-consumption : <0.9 W
General
Model number	FTP-830-00053
Warranty	3-year hardware warranty
Battery
Type	Lithium-ion 18650 cells 3.6V, 3,400 mAh is recommended
Capacity	150Wh / 300Wh, dependent on configuration
Coltage	Battery voltage: 11 V nominal
Output terminals	2 x RJ45 data ports 1 x RJ45 port for IoT (only) 1 x DC cable terminal
Physical

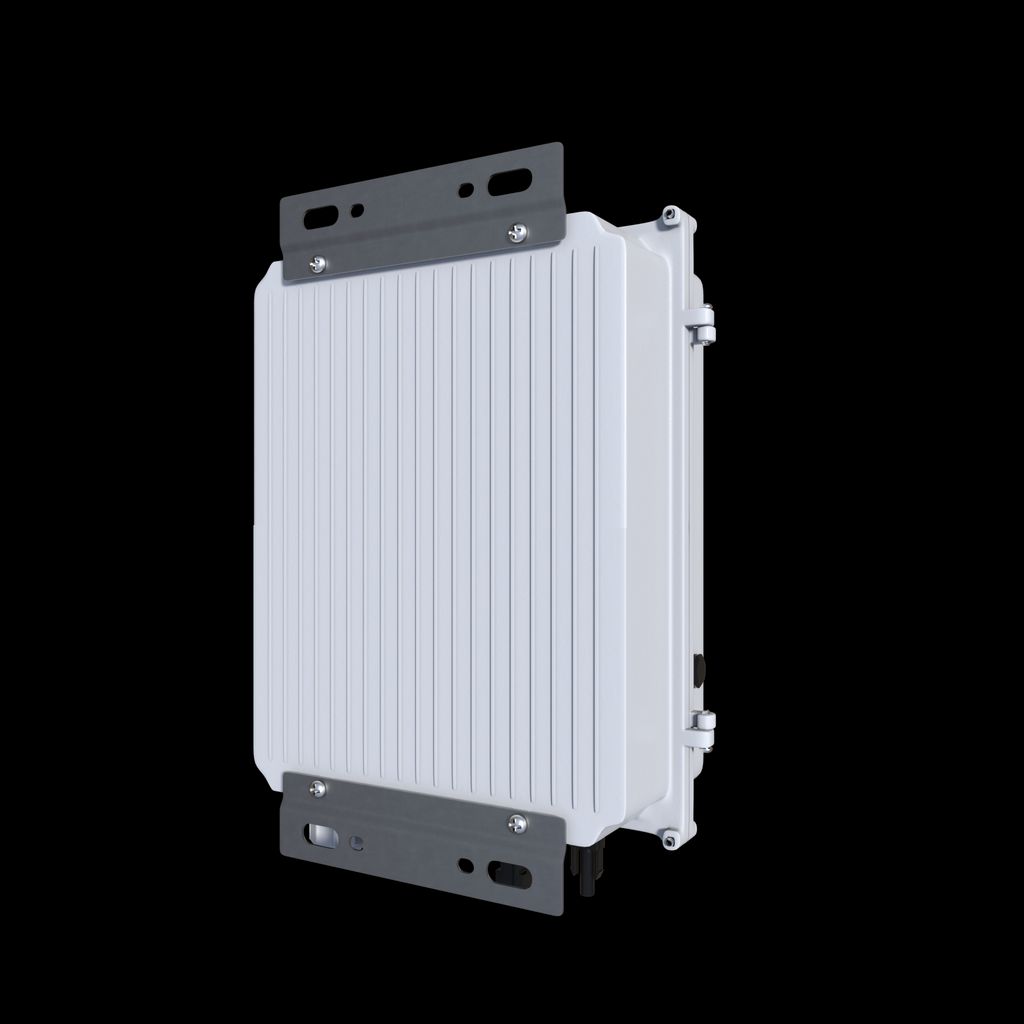

Mounting	Tower, pole, wall

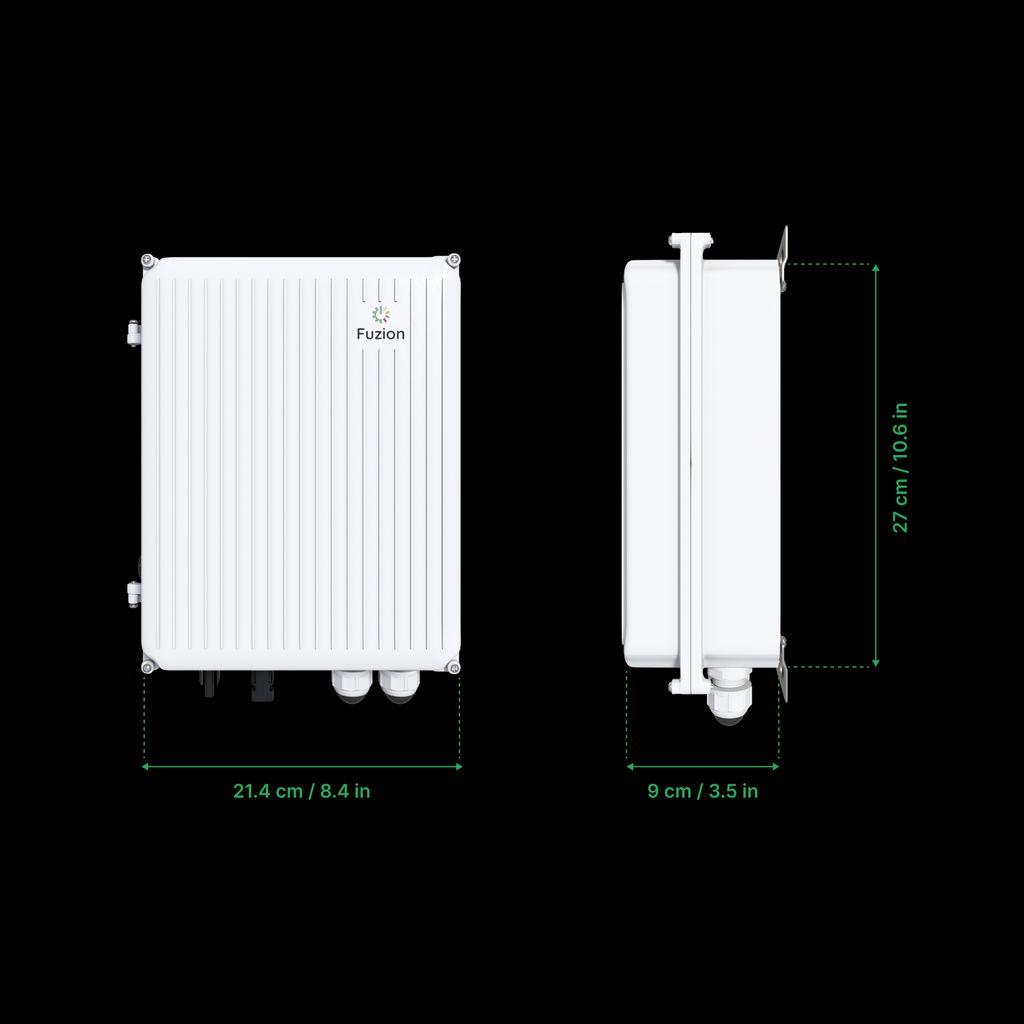

Dimensions	Height: 27 cm / 10.6 in Width: 21.4 cm / 8.4 in Depth: 9 cm / 3.5 in
Operating temperature	Charging: +0°C to +45°C / +32°F to +113°F Discharging: -20°C to +60°C / -4°F to +140°F
Weight	FTP-300 excluding batteries : 2.20 kg / 4.85 lbs FTP-300 with 150 Wh (18 cell) battery configuration: 3.05 kh / 6.72 lbs FTP-300 with 300 Wh (36 cell) battery configuration: 3.90 kg / 8.60 lbs
Box IP-Rating	IP65
Material (Box)	Die-cast aluminum, stainless steel

FTP-300

Ideal for Wi-Fi hotspots, surveillance cameras, microwave CPE's, cellular gateways and more.

Capacity: 300 Wh
Ethernet ports: 2 x 100 Mbps Ethernet, connected back-to-back
Output power: 2 x 0/24/48 VDC selectable Passive PoE; 1 x AUX +24 VDC
Use case: Access sites
Warranty: 3 years
Related documents:

Fuzion FTP-300 Datasheet

Fuzion FTP-300 Quick Start Guide
